OsburnWood InsertMid-range ($$)Part Number: OB01705
Wood Insert Specifications
- Installation Scenario
- Traditional Open Fireplace
- Heat Output
- Medium
- Front Width
- 27.5 in.
- Back Width
- 27.5 in.
- Opening Height
- 21.5 in.
- Depth
- 12.875 in.

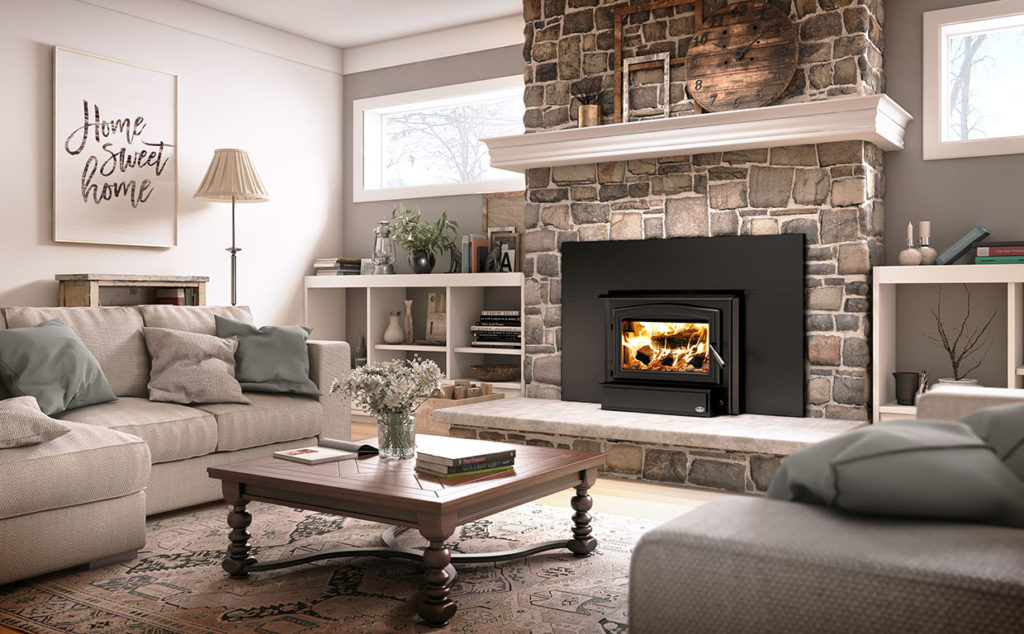

About the Osburn 1700
Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device whose average particle emission rate is prodigiously low at 1.26 g/h!
Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, stainless steel heat shield added to the C-Cast firestop, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims.
• Fuel type : Dry cordwood (16″ recommended)
• Recommended heating area-ft² : () 500 – 1,800
• Overall firebox volume-ft³ : 1.9
• EPA loading volume-ft³ : 1.44
• Maximum burn time : () 6 h
• Maximum heat output-dry cordwood : (2) 65,000 BTU/h (19 kW)
• Overall heat output rate < : (2) (3) 15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
• Average overall efficiency (dry cordwood) : (3) 70 % (HHV) (4) 75 % (LHV) (5)
• Optimum overall efficiency : (6) (7) 78 %
• Optimum heat transfer efficiency : (8) 74 %
• Average particulate emissions rate : (9) 1.26 g/h
• Average CO : (10) 58 g/h
Common Questions
What is a fireplace insert and when do you need one?
Fireplace inserts are sealed metal fireboxes that slide into a pre-existing masonry fireplace, converting a drafty open hearth into a powerful heating system. If you already have a wood-burning fireplace, an insert is one of the quickest ways to upgrade its efficiency, heat output, and safety.
From our guide: What is a Fireplace Insert and When Do You Need One?
Catalytic or non-catalytic: which wood insert style is right for you?
The most important question is how long the insert keeps your house warm before you reload. Non-catalytic (tube-style) inserts deliver strong heat quickly with typical burns of 4 to 8 hours per load; catalytic models trade some immediacy for longer, steadier burns.
From our guide: What to Look for in a Wood Burning Fireplace Insert?
How long does installation take?
Shorter than you’d think. While permits and parts take a few weeks in the background, the actual in-home disruption for most projects is limited to just one day, and inserts often take only half a day when gas and electric are already in place.
From our guide: How Long Does a New Fireplace Installation Take?
How do you find out what the Osburn 1700 would cost for your home?
Use the Get Instant Estimate button on this page. Answer a few questions about your space and you’ll get an estimate for the unit and the venting your installation needs, with no phone call required.
