OsburnWood InsertMid-range ($$)Part Number: OB01900
Wood Insert Specifications
- Installation Scenario
- Traditional Open Fireplace
- Heat Output
- Medium / Mild
- Front Width
- 25 in.
- Back Width
- 25 in.
- Opening Height
- 19 in.
- Depth
- 15.5 in.

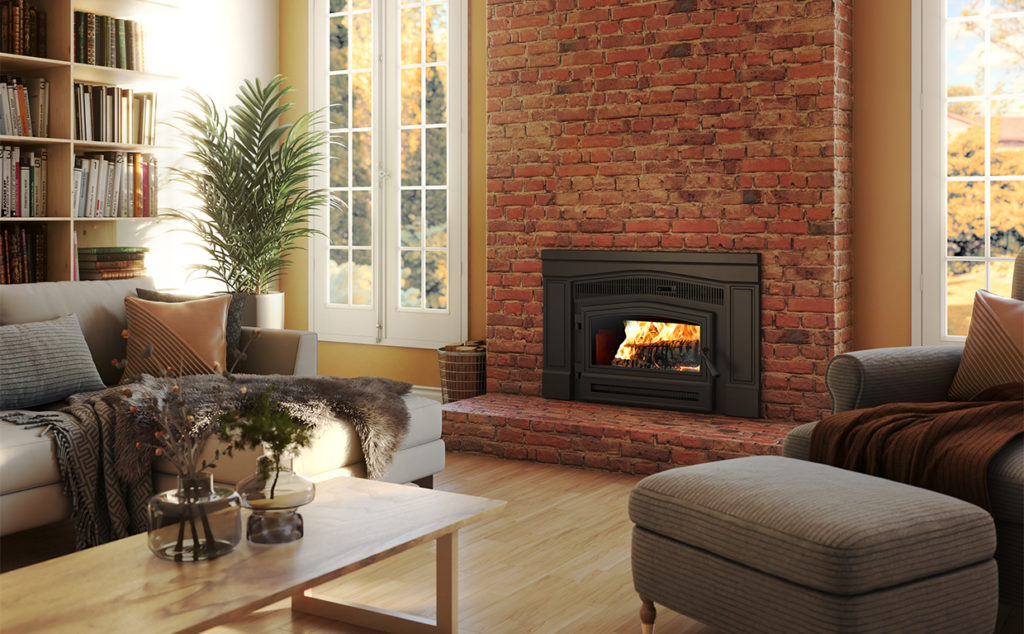

About the Osburn Matrix 1900
Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Its discreet black wooden handle, air control with removable handle as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
• Fuel type : Dry cordwood (16″ recommended)
• Recommended heating area-ft² : () 250 – 1,200
• Overall firebox volume-ft³ : 1.2
• EPA loading volume-ft³ : 1.03
• Maximum burn time : () 7 h
• Maximum heat output-dry cordwood : (2) 45,000 BTU/h (13.19 kW)
• Overall heat output rate < : (2) (3) 8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW)
• Average overall efficiency (dry cordwood) : (3) 75 % (HHV) (4) 80 % (LHV) (5)
• Optimum overall efficiency : (6) (7) 82 %
• Optimum heat transfer efficiency : (8) 78 %
• Average particulate emissions rate : (9) 1.5 g/h
• Average CO : (10) 34 g/h
Common Questions
What is a fireplace insert and when do you need one?
Fireplace inserts are sealed metal fireboxes that slide into a pre-existing masonry fireplace, converting a drafty open hearth into a powerful heating system. If you already have a wood-burning fireplace, an insert is one of the quickest ways to upgrade its efficiency, heat output, and safety.
From our guide: What is a Fireplace Insert and When Do You Need One?
Catalytic or non-catalytic: which wood insert style is right for you?
The most important question is how long the insert keeps your house warm before you reload. Non-catalytic (tube-style) inserts deliver strong heat quickly with typical burns of 4 to 8 hours per load; catalytic models trade some immediacy for longer, steadier burns.
From our guide: What to Look for in a Wood Burning Fireplace Insert?
How long does installation take?
Shorter than you’d think. While permits and parts take a few weeks in the background, the actual in-home disruption for most projects is limited to just one day, and inserts often take only half a day when gas and electric are already in place.
From our guide: How Long Does a New Fireplace Installation Take?
Will the Osburn Matrix 1900 look right in your room?
Use the Visualize in Your Space button to upload a photo of your room and see this exact model rendered in it.
